本装置可进行催化剂的筛选和工艺条件的优化，由两个反应器串联，可装填不同催化剂（100ml-200ml),中间设采样罐，由微机加智能议表控制，仪表精度、自动化程度国内一流，试验数据受人为因素影响小，可信度很高。本试验装置由进料、加热、反应、分离、气提、收料等系统构成，配备进口微量泵、氢气压缩机、循环氢压缩机及进口质量流量计本装置可控反应压力在0~10.0Mpa 之间，控制精度±0.1Mpa，可控反应温度500ml/h.新鲜氢气流量≤3000ml/min. 循环氢气流量≤10000ml/min.

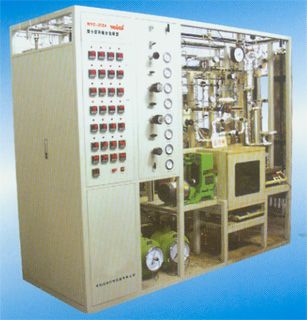

MYM-2003 Packaged hydrogenation reaction test unit:
   　 It can be used to select the catalyst and optimize the process conditions.It is designed with two series reactors coeditions .It is designed with two series reactors for different catalysts,and one sampling tank in the middle section It is controled by a comprter and intellinent instrumerts with the first control accuracy automation level at home .The test data have very high confidence hou the less man-made infuence .This unit ys madeoffeeding,heating,reacting,separating,gasstrippingmand materila receiving system,with a inported micro pump ,a hydrogen gas compressor,a circle hydrogen gas compressor,and a importde mass flowmeter .The control pressure ys batten 0~10.0Mpa,the control accuracy is +0.1Mps,the comtrol accruacy is 1度 .the max feed yd 500ml/hr,the max fresh hydrogen flow is 3000ml/min ,the max circulating hydrogen flow is 10000ml/min.
